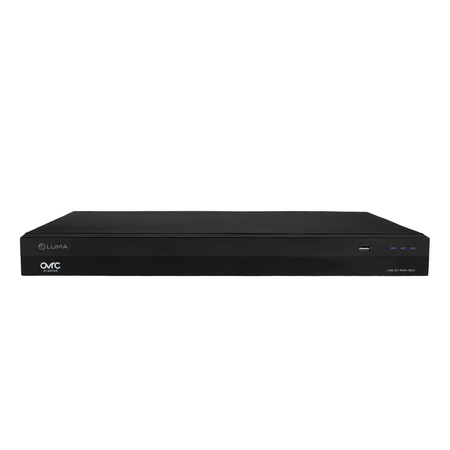

221 Series 16-Channel NVR | No Hard Drive
The 221 Series 16-Channel NVR scales the current-generation Luma NVR line up to 16 PoE ports and a 240W power budget, with two SATA bays and 4K HDMI output for larger residential and small business installs. Free Luma View VMS software supports multi-site management across up to 256 cameras.
Room to Grow
Two internal SATA bays support up to 18TB per drive (36TB total), and an internal power supply keeps rack installs clean. OvrC handles setup, alerts, and firmware updates remotely.
NDAA Compliant and ONVIF Conformant
Meets NDAA compliance requirements, integrates with Control4 and other control systems, and works alongside third-party ONVIF hardware.
Full Specifications
| Channels | 16 |
| PoE Ports | 16 |
| PoE Power Budget | 240W |
| PoE Max Power per Port | 30W (single) / 15W (all ports) |
| PoE Standard | IEEE 802.3AF/AT |
| Bandwidth | 192/192 Mbps |
| Supported Resolutions | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P |
| Frame Rate | NTSC 30fps / PAL 25fps (up to 16MP@30fps) |
| Video Outputs | HDMI/VGA: up to 3840x2160 |
| AI Event Detection | Human, Vehicle & Non-motor Vehicle Detection |
| Decoding Capability | 1x16MP@30fps / 4x8MP@30fps / 9x2MP@30fps / 16x2MP@30fps |
| Search Features | Time Search, Event Search, Intelligent Analysis Search |
| Alarm Inputs/Outputs | 8 Inputs / 4 Outputs |
| Audio Inputs/Outputs | 1 x RCA / 1 x RCA |
| Network Interface | 1 Gigabit, RJ45 |
| Hard Drive Bays | 2 |
| Hard Drive Storage | Up to 18TB each, 36TB max |
| Power Supply | AC 100-240V, 50-60Hz |
| Power Consumption | ≤20W (without HDD/PoE) |
| Dimensions (W x H x D) | 11.16" x 17.24" x 1.72" |
| Rack Spacing | 1U |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Certifications | ETL, CE, FCC, EU RoHS, REACH, WEEE, NDAA Compliant, ONVIF Conformant |
| Warranty | 3 years |
| Hard Drive | No Hard Drive |
| Weight | 9.24 lb |
