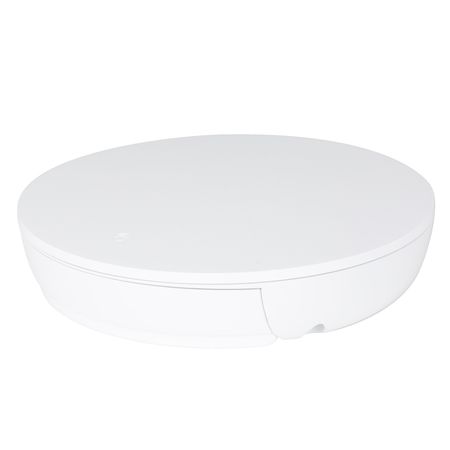

320 Series WiFi 6 Indoor Wireless Access Point
The Araknis 320 Series Indoor Access Point is Araknis's entry-level Wi-Fi 6 access point, sized right for smaller projects — single-family homes, large rooms, and apartments — without giving up the performance features installers expect. Wi-Fi 6 fundamentals including OFDMA, MU-MIMO, 1024 QAM, and BSS Coloring keep the network responsive as more devices join, and a 2x2 antenna design delivers peak data rates up to 1800 Mbps combined across bands.
Wi-Fi 6 Efficiency
OFDMA lets the 320 Series serve multiple devices in a single transmission window instead of queuing them one at a time, which keeps high-density environments — smart-home hubs, streaming devices, phones, and laptops all on one network — from bogging each other down. Up to 18 SSIDs per access point give installers room to segment guest, IoT, and primary networks cleanly.
Simple Ceiling or Wall Mounting
A tool-free reset button and mounting bracket compatible with the Araknis 510 Series make installation straightforward, and the access point pairs with Araknis in-ceiling mounting brackets for a clean, flush-mounted finish.
Managed Through OvrC
Like the rest of the Araknis lineup, the 320 Series reports into OvrC for cloud-based configuration, monitoring, and troubleshooting — especially useful on jobs running several access points, where OvrC gives a single view across the whole deployment instead of logging into each AP individually.
Full Specifications
| Warranty | 2 years |
| Wireless Protocols | 802.11 a/b/g/n/ac/ax (Wi-Fi 6) |
| Network / Ethernet | 1 x 1G BASE-T Ethernet (RJ-45) |
| PoE Features | 802.3af (PoE) / 802.3at (PoE+) |
| Antenna | 2x2 |
| PoE Power Draw | 14.45W full functionality (802.3at) / limited on 802.3af |
| Data Transfer Rate | 2.4GHz: 574 Mbps | 5GHz: 1200 Mbps (1800 Mbps peak) |
| Wireless Features | Auto Channel Selection, up to 18 SSIDs per AP, WPA3/WPA2/WPA Mixed, MAC Filtering, Hidden SSID, Guest Network |
| Features | Rate Limiting, L2 Access Control List, Wi-Fi Scheduler, Max Client Limit, Wireless Client Isolation |
| Certifications | FCC DFS, IC DFS, CE DFS, Wi-Fi 6 CERTIFIED, WMM, WPA/WPA2/WPA3 |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Weight | 1.34 lbs |
| Dimensions | 7.33" W x 7.33" D x 1.56" H |
Related Accessories
Commonly paired with the Araknis In-Ceiling Mounting Bracket - Small (AN-ACC-ICBKT-SR), the 30W Multi-Gigabit PoE Injector (AN-POE-INJ-MG-30W), and the 12V/4A Power Supply (AN-ACC-PS-12V4A) for installs not using PoE.
