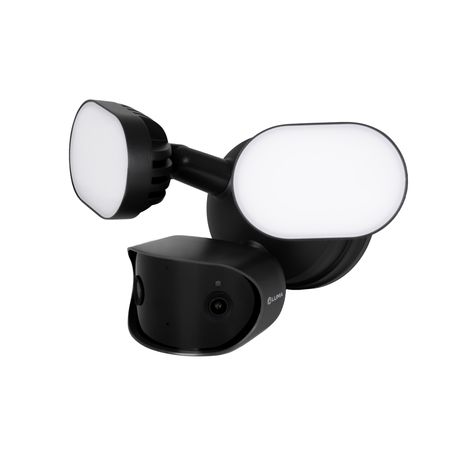

720 Series 7MP PoE Floodlight IP Camera with Active Deterrence, Black
The 720 Series Floodlight Camera pairs a dual-lens, 7MP panoramic sensor with an integrated floodlight and active deterrence, covering a 200-degree field of view with no stitching gap. AI analytics classify human, vehicle, and non-motor vehicle activity, and when the camera detects an intrusion or line-crossing event it can automatically flash the floodlight and sound an audible alarm to deter activity in real time.
Dual-Lens Panoramic Coverage
Two 7MP sensors stitch together into a single, gap-free 200-degree horizontal image, giving wide-area coverage that would otherwise take two separate fixed cameras.
Active Deterrence
AI-based intrusion and line-crossing detection can trigger the built-in floodlight to flash and sound an audible alarm automatically, adding a real-time deterrent layer on top of standard recording.
Hybrid Night Vision
IR delivers monochrome night vision out to 30 meters, while the integrated white-LED floodlight extends full-color night viewing out to 15 meters when triggered or manually activated.
Local Storage or NVR Recording
Record locally to an onboard microSD card (up to 1TB) or send video directly to a Luma NVR for centralized storage and management.
Two-Way Audio
A built-in microphone and a 110dB speaker support two-way audio through the Luma View app, useful for addressing visitors or deterring activity with a live voice-down.
Fast Setup and Remote Management with OvrC
The 720 Series configures through OvrC for remote image settings, recording setup, and system management, and integrates with Control4 and other popular control systems.
Weatherproof Housing
An IP66 rating and a -4°F to 122°F operating range keep this camera running outdoors in a wide range of conditions.
Note: This camera draws more power than standard PoE or PoE+ can supply — a PoE++ (IEEE 802.3bt) injector or switch port is required.
Full Specifications
| Color | Black |
| Warranty | 3 years |
| Image Sensor | Dual 7MP (1/1.8") CMOS |
| Lens | Dual lens, F1.0-F1.07 |
| Field of View | Horizontal: 200° (stitched panoramic) / Vertical: 60° |
| Frame Rate | Up to 30 FPS |
| Minimum Illumination | 0.001 lux (AGC on, F1.6); 0 lux with IR or floodlight |
| IR Range | Up to 30m |
| Floodlight (White LED) Range | Up to 15m |
| Wide Dynamic Range | >100dB |
| Dynamic Noise Reduction | 2D/3D DNR |
| AI Analytics | Human, vehicle & non-motor vehicle detection; motion, line crossing, intrusion, scene-change detection |
| Active Deterrence | AI-triggered flashing floodlight and audible alarm on intrusion/line-crossing events |
| Max Resolution | 4560 x 1520 (panoramic stitched) |
| Streams | Main: up to 4560x1520 H.265/H.264 | Sub/Third: 704x480 | Fourth: H.265/H.264/MJPEG |
| Microphone/Speaker | 1-channel mic built-in; 1-channel speaker built-in, 110dB @ 4in (two-way audio) |
| SD Card Support | microSD, up to 1TB (or record direct to a Luma NVR) |
| Network | PoE++ required (IEEE 802.3bt); standard PoE/PoE+ not sufficient |
| Power Consumption | 37.8W @ 54V |
| Outdoor Rating | IP66 |
| Certifications | ETL Listed, CE, FCC, UKCA, NDAA Compliant, ONVIF Conformant |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Dimensions | 10.74 x 8.48 x 7.51 in (273 x 215.6 x 191mm) |
| Weight | 2.66 lbs (1.21 kg) |
