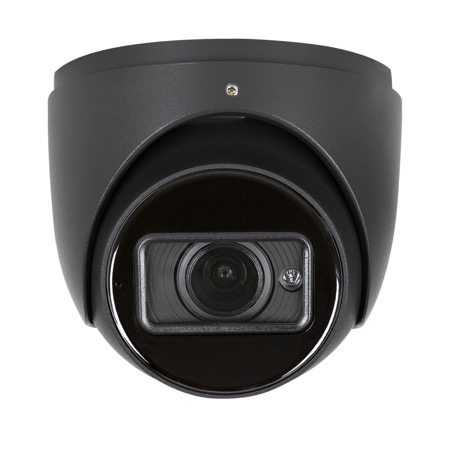

420 Series 4MP Motorized Turret IP Outdoor Camera, Black
The 420 Series Turret IP Camera pairs a 4MP sensor with a 2.7-13.5mm motorized varifocal lens in a compact turret housing with 360-degree pan for flexible aiming without external brackets, so the field of view can be dialed in remotely without climbing a ladder to adjust the lens by hand. Starlight low-light performance and IR out to 50 meters keep footage usable around the clock, and onboard AI analytics classify human, vehicle, and non-motor vehicle activity to cut down on false motion alerts.
Remote Motorized Zoom
The motorized varifocal lens can be zoomed and focused remotely through OvrC or the local web UI, making it easy to fine-tune coverage after mounting or to adjust framing later as a site's needs change.
Fast Setup and Remote Management with OvrC
Every 420 Series camera configures through OvrC, so installers can adjust image settings, set up recording, and manage the camera on-site or remotely. The camera also integrates with Control4 and other popular control systems.
Built-In Microphone and Audio I/O
An onboard microphone can be enabled or disabled remotely through OvrC, and dedicated audio input and output connections cover two-way audio and other surveillance audio needs.
Weatherproof Housing
An IP67 rating and a -22°F to 140°F operating range keep this camera running outdoors through harsh conditions.
Full Specifications
| Color | Black |
| Warranty | 3 years |
| Image Sensor | 4MP (2688 x 1520) |
| Frame Rate | Up to 30 FPS |
| Shutter Speed | 1/2s - 1/100000s |
| Lens | 2.7-13.5mm motorized varifocal, F1.6 |
| Minimum Illumination | 0.005 lux (AGC on, Starlight); 0 lux with IR |
| Field of View | Horizontal: 34.7° - 108.5° (varies with zoom) |
| Mounting Adjustment | Pan: 0°-360° / Tilt: 0°-80° / Rotation: 0°-360° |
| IR Range | Up to 50m |
| Wide Dynamic Range | 120dB, with highlight and backlight compensation |
| Dynamic Noise Reduction | 3D DNR |
| AI Analytics | Human, vehicle & non-motor vehicle detection; motion, line crossing, intrusion, and target counting |
| Streams | Main: up to 4MP H.265+ | 2nd: 704x480 H.264 | 3rd: 704x480 H.264 | 4th: 1920x1080 H.265/H.264/MJPEG |
| Microphone | Built-in, with audio input/output |
| SD Card Support | Up to 256GB |
| Network | PoE, IEEE 802.3af |
| Power Consumption | DC12V / PoE, <9W |
| Outdoor Rating | IP67 |
| Certifications | ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformant |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
