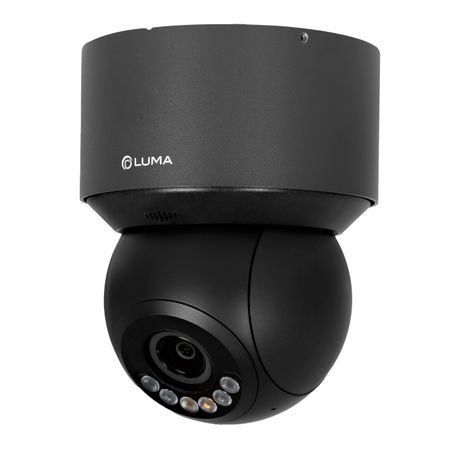

420 Series 4MP Mini PTZ IP Outdoor Camera, Black
The 420 Series Mini PTZ IP Camera combines a 4x optical zoom motorized lens with continuous 360-degree pan and -15° to 90° tilt in a compact form factor, giving installers full active coverage of a site from a single camera. AI-powered auto tracking follows moving subjects across the frame, and Starlight low-light performance with 50m IR keeps footage usable after dark.
AI Auto Tracking
Onboard AI detects and tracks people and vehicles as they move through the scene, automatically panning and zooming to keep the subject in frame without an operator at the controls.
Fast Setup and Remote Management with OvrC
The Mini PTZ configures through OvrC for remote image settings, recording setup, and preset management, and integrates with Control4 and other popular control systems for live PTZ control from a touchscreen or keypad.

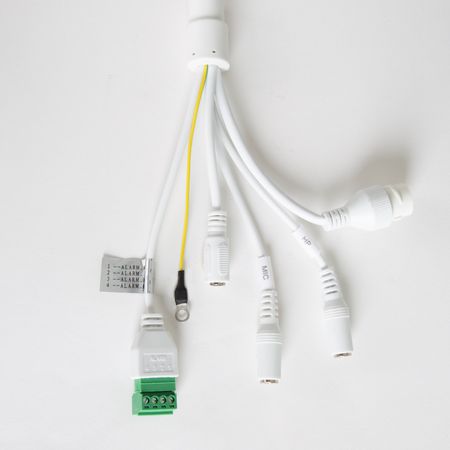

Built-In Microphone and Audio I/O
An onboard microphone can be enabled or disabled remotely through OvrC, and dedicated audio input and output connections cover two-way audio and other surveillance audio needs.
Weatherproof Housing
An IP67 rating and a -22°F to 140°F operating range keep this camera running outdoors through harsh conditions.
Full Specifications
| Color | Black |
| Warranty | 3 years |
| Image Sensor | 4MP (2688 x 1520) |
| Frame Rate | Up to 30 FPS |
| Lens | 2.7-11mm motorized varifocal, 4x optical zoom |
| Minimum Illumination | 0.005 lux (AGC on, Starlight); 0 lux with IR |
| Pan/Tilt Range | Pan: 0°-360° continuous / Tilt: -15°-90° |
| IR Range | Up to 50m |
| Wide Dynamic Range | 120dB, with highlight and backlight compensation |
| AI Analytics | Human & vehicle detection, auto tracking, scene-change detection |
| Streams | Main: up to 4MP H.265+ | 2nd: 704x480 H.264 | 3rd: 1920x1080 H.265/H.264/MJPEG |
| Microphone | Built-in, with audio input/output |
| SD Card Support | Up to 256GB |
| Network | PoE+, IEEE 802.3at |
| Outdoor Rating | IP67 |
| Certifications | ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformant |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
