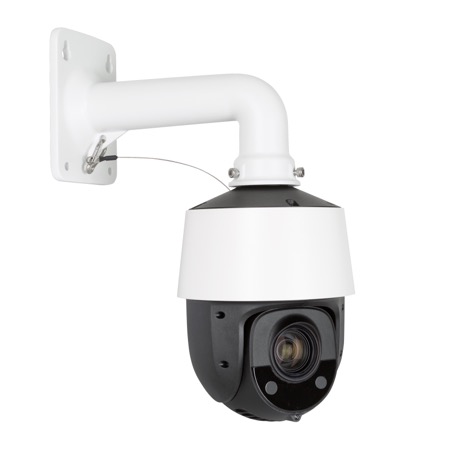

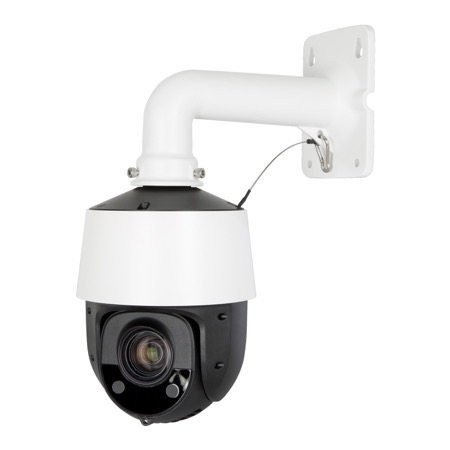

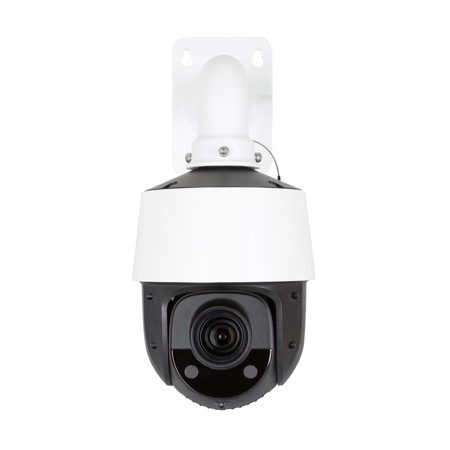

420 Series 2MP 25x Optical Zoom PTZ IP Outdoor Camera, White
The 420 Series 25x PTZ IP Camera delivers long-range pan-tilt-zoom coverage with a 4.8-120mm motorized lens, continuous 360-degree pan, -15° to 90° tilt, and IR reaching out to 150 meters — built for parking lots, perimeters, and other wide-area sites that need one camera to cover ground that would otherwise take several fixed cameras. AI-powered auto tracking follows moving subjects across the frame, and preset tours automate patrol patterns without an operator at the controls.
Long-Range 25x Optical Zoom
25x optical zoom combined with 150m IR range lets a single 420 Series PTZ cover distances that would otherwise require multiple fixed cameras, with remote zoom and focus control through OvrC or the local web UI.
AI Auto Tracking and Preset Tours
Onboard AI detects and tracks people and vehicles as they move through the scene, and programmable preset tours automate scheduled patrol patterns across a wide-area site.
Fast Setup and Remote Management with OvrC
The 25x PTZ configures through OvrC for remote image settings, recording setup, and preset management, and integrates with Control4 and other popular control systems for live PTZ control from a touchscreen or keypad.

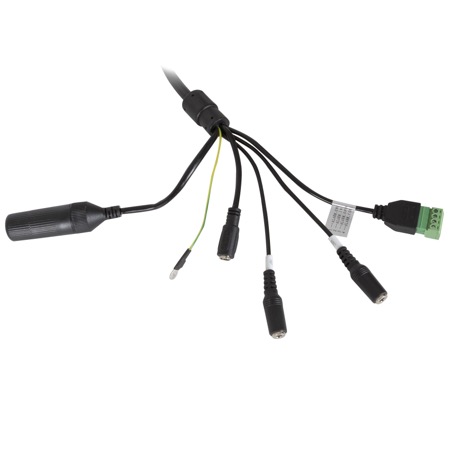

Built-In Microphone and Audio I/O
An onboard microphone can be enabled or disabled remotely through OvrC, and dedicated audio input and output connections cover two-way audio and other surveillance audio needs.
Weatherproof Housing
An IP66 rating and a -22°F to 140°F operating range keep this camera running outdoors through harsh conditions.
Full Specifications
| Color | White |
| Warranty | 3 years |
| Image Sensor | 2MP (1920 x 1080) |
| Frame Rate | Up to 30 FPS |
| Lens | 4.8-120mm motorized varifocal, 25x optical zoom |
| Minimum Illumination | 0.001 lux (AGC on, Starlight); 0 lux with IR |
| Pan/Tilt Range | Pan: 0°-360° continuous / Tilt: -15°-90° |
| IR Range | Up to 150m |
| Wide Dynamic Range | 120dB, with highlight and backlight compensation |
| AI Analytics | Human & vehicle detection, auto tracking, scene-change detection, preset tours |
| Streams | Main: up to 2MP H.265+ | 2nd: 704x480 H.264 | 3rd: 1920x1080 H.265/H.264/MJPEG |
| Microphone | Built-in, with audio input/output |
| SD Card Support | Up to 256GB |
| Network | PoE+, IEEE 802.3at |
| Outdoor Rating | IP66 |
| Certifications | ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformant |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
