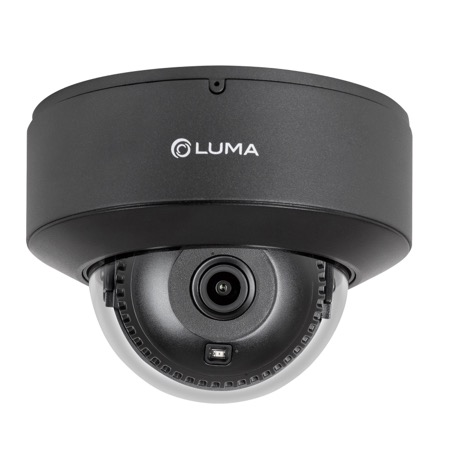

220 Series 2MP Dome IP Outdoor Camera, Black
The 220 Series Dome IP Camera delivers 2MP / 1080p resolution in a low-profile dome housing for a discreet, ceiling-friendly install. Starlight low-light technology keeps nighttime footage clear well before IR takes over, and onboard AI analytics classify human, vehicle, and non-motor vehicle activity to cut down on false motion alerts.
Fast Setup and Remote Management with OvrC
Every 220 Series camera configures through OvrC, so installers can adjust image settings, set up recording, and manage the camera on-site or remotely. The camera also integrates with Control4 and other popular control systems.
Local Storage and Audio Input

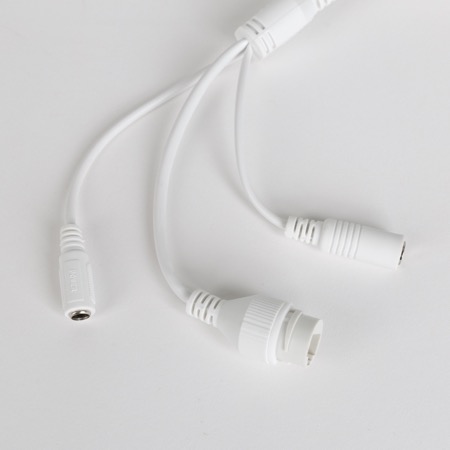

Local SD card storage up to 256GB backs up footage at the edge, and a dedicated audio input connector supports an external microphone for sites that need audio capture.
Weatherproof Housing
An IP67 rating and a -22°F to 140°F operating range keep this camera running outdoors through harsh conditions.
Full Specifications
| Color | Black |
| Warranty | 3 years |
| Image Sensor | 2MP (1920 x 1080) |
| Frame Rate | Up to 30 FPS |
| Shutter Speed | 1/2s - 1/100000s |
| Lens | 2.8mm fixed, F1.6 |
| Minimum Illumination | 0.005 lux (AGC on, Starlight); 0 lux with IR |
| Field of View | Horizontal: 106° / Vertical: 55° |
| Mounting Adjustment | Pan: 0°-360° / Tilt: 0°-80° / Rotation: 0°-360° |
| IR Range | 20 - 30m |
| Wide Dynamic Range | 120dB, with highlight and backlight compensation |
| Dynamic Noise Reduction | 3D DNR |
| AI Analytics | Human, vehicle & non-motor vehicle detection; motion, line crossing, intrusion, and target counting |
| Streams | Main: up to 2MP H.265+ | 2nd: 704x480 H.264 | 3rd: 704x480 H.264 | 4th: 1280x720 H.265/H.264/MJPEG |
| Microphone | No (1-channel audio input for external mic) |
| SD Card Support | Up to 256GB |
| Network | PoE, IEEE 802.3af |
| Power Consumption | DC12V / PoE, <5W |
| Outdoor Rating | IP67 |
| Certifications | ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformant |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
| Dimensions (W x H x D) | 167.5mm x 74.5mm x 74.5mm |
