QSFP28 Transceiver Module - 100m

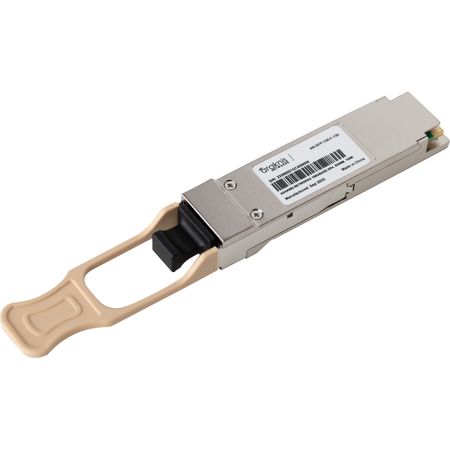

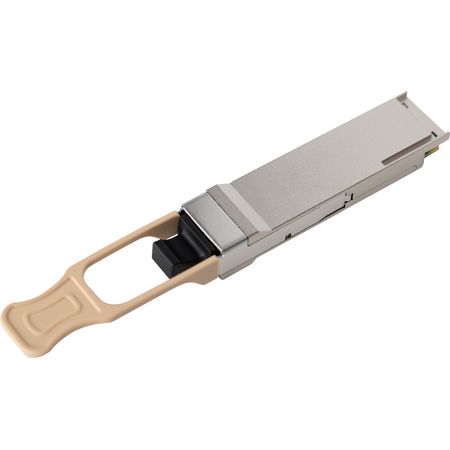

The Araknis Networks® QSFP28 Transceiver Module extends a 100Gbps QSFP28 uplink over multi-mode fiber with an MTP/MPO connector, reaching up to 100 meters for building backbone runs from an Araknis 920 Series switch.
Full Specifications
| Form Type | QSFP28 |
| Warranty | 2 years |
| Connector Type | MTP/MPO |
| Cable Type | 1310nm fiber optic |
| Data Transfer Rate | 100Gbps (25Gbps/lane) |
| Transmission Distance | 328ft (100m) |
| Supported Network Protocols | 100GBase-SR4 |
| Transfer Mode | Multi-mode |
| Maximum Power | 3.6V |
| Operating Temperature | 32° to 158°F (0° to 70°C) |
| Storage Temperature | -40° to 185°F (-40° to 85°C) |
| Dimensions (W x H x D) | 5.03" x 0.33" x 0.72" (128 x 8.6 x 18.45mm) |
| Weight | 0.15 lb (0.07 kg) |
