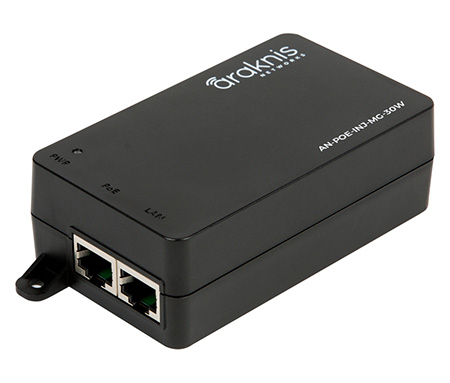

Multi-Gig PoE+ Injector
The Araknis Multi-Gig PoE+ Injector is the go-to accessory for powering a PoE device off a non-PoE switch — access points, IP cameras, control touchpads, and similar low-voltage devices — without running a separate power line. It delivers 2.5Gbps throughput alongside up to 30W of PoE+ power, with reach up to 330 feet from the injector to the powered device.
Multi-Gigabit Speed, PoE+ Power

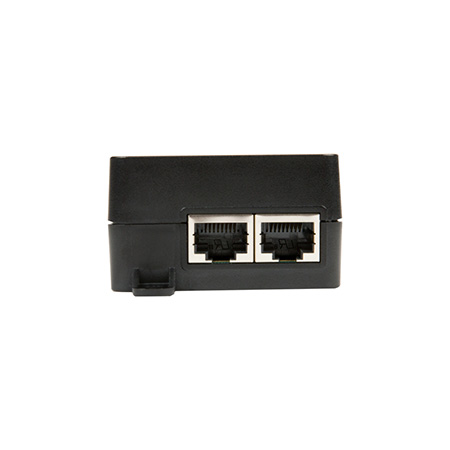

A single Ethernet-IN data port and PoE-OUT port supply both data and 54V DC power at up to 30W, fully compliant with IEEE 802.3af and 802.3at while still passing 2.5Gbps multi-gigabit speeds — a fanless, silent design keeps it quiet on a rack or tucked into a Strong VersaBox enclosure.
Compact, Flexible Mounting

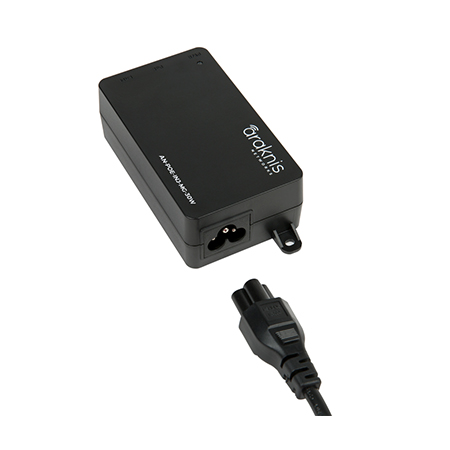

A palm-sized enclosure with built-in mounting ears fits in a rack, on a wall, or in a ceiling space, and an integrated AC inlet (100-240VAC) does away with a bulky external DC wall adapter. Surge and short-circuit protection keep the connected device safe from power irregularities.
Full Specifications
| Warranty | 2 years |
| Port Speed | 2.5 Gbps |
| Ethernet-IN Port | 1 (data only) |
| PoE-OUT Port | 1 (data + power) |
| PoE Line Output | 54V DC, 30W max |
| Line Voltage | 100-240 VAC (0.8A max) |
| Supported Standards | IEEE 802.3af, 802.3at, 802.3 10BaseT, 802.3u 100BaseTX, 802.3ab 1000BaseT |
| Certifications | FCC, CE, cUL US |
| Features | PWR LED, Surge Protection, Short-Circuit Protection, Built-In Mounting Ears |
| Operating Humidity | 5-90% |
| Operating Temperature | -4°F to 122°F |
| Dimensions | 2.27" W x 1.3" H x 3.9" D |
-
