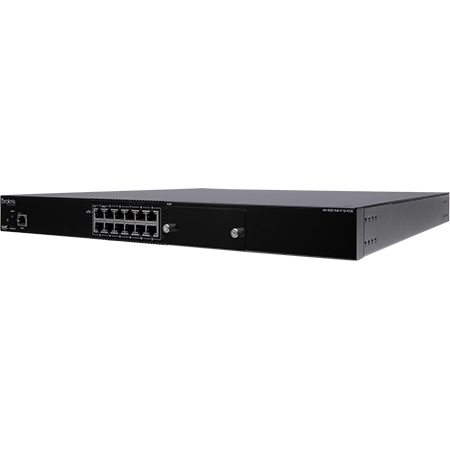

920-Series L3 Managed 10G PoE++ Switch | 12 Front Ports
The Araknis 920 Series is the flagship of the Araknis switch lineup — a fully managed Layer 3 switch with 10G available on every port, purpose-built for AV-over-IP and other power- and bandwidth-intensive deployments. PoE++ Type 4 ports deliver up to 90W each, and Layer 3 multicast routing keeps demanding traffic moving efficiently without leaning entirely on the router.

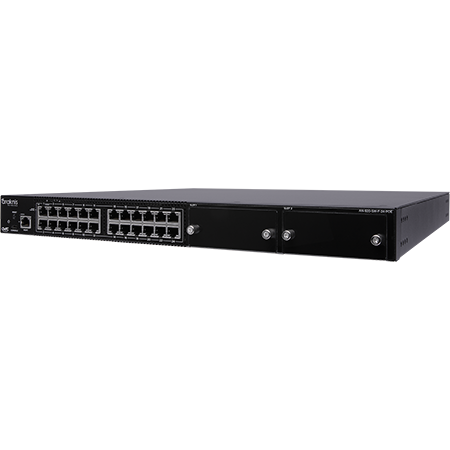

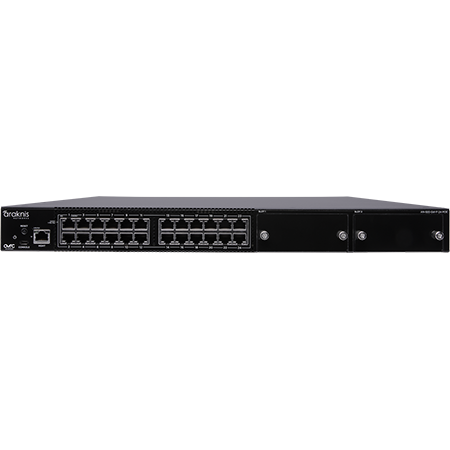

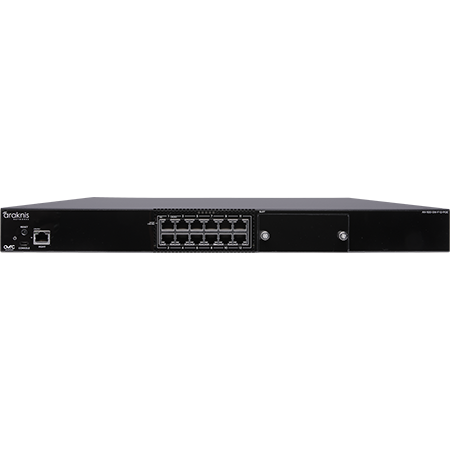

12 or 24 Ports of True 10G
Choose the 12-port or 24-port configuration depending on the scale of the install — both deliver 100M/1G/2.5G/5G/10G BASE-T on every port, with QSFP28 expansion slots (one on the 12-port, two on the 24-port) supporting 100G uplink modules for larger network architectures.
Modular, Redundant Power
A modular power supply design lets installers add a second 920W PSU for both increased PoE budget and power redundancy — critical on jobs where the switch is serving cameras, access points, and other always-on infrastructure that can't go down.
Managed Through OvrC
Every 920 Series switch reports into OvrC for free remote management, configuration, and troubleshooting, with a multi-speed cooling system and temperature sensors keeping operation quiet and efficient even under a full 10G/PoE++ load. Backed by a 5-year limited warranty on parts and labor.
Full Specifications
| Warranty | 5 years |
| Rack Spacing / Form Factor | 1U Rackmount (both configurations) |
| Ports | 12-Port: 12 x 100M/1G/2.5G/5G/10G BASE-T RJ45 | 24-Port: 24 x 100M/1G/2.5G/5G/10G BASE-T RJ45 |
| SFP Ports | 12-Port: 1 x QSFP28 module slot | 24-Port: 2 x QSFP28 module slots |
| Console Port | 1 x Micro USB, 1 x 10M/100M/1G BASE-T RJ45 management port |
| PoE Features | 802.3bt Type 4 compliant, 90W per port, Power Sequence Control, Time-Based Control, Priority Control, Perpetual PoE, Fast PoE |
| PoE Power Budget | 12-Port: 771.5W with 1 PSU (8 ports@90W) / 1691.5W with 2 PSUs (12 ports@90W) | 24-Port: 727.5W with 1 PSU (8 ports@90W) / 1647.5W with 2 PSUs (18 ports@90W) |
| QoS Features | 7 priority queues, port-based rate limiting, WRR & SP scheduling, ACL (L2/L3/L4, IPv4/IPv6), Auto-VoIP, DiffServ/Class Maps/Policy Maps, CoS/802.1p/DSCP |
| Power | Modular power supply, optional second 920W PSU for expanded budget and redundancy |
| Management | OvrC cloud management, dual firmware image, SSLv3/TLS1.2/SSHv2 |
| Line Voltage | 100-240V AC, 50/60Hz |
| Weight (chassis only) | 12-Port: 12.3 lb | 24-Port: 12.6 lb |
| Certifications | FCC, CE, RoHS |
-
