520 Series Wi-Fi 6 Outdoor Wireless Access Point
The Araknis AN-520-AP-O delivers reliable signal and fast internet speed anywhere outdoors, with an IP55 weather-resistant rating built to handle rain, dust, and temperature swings across a wide -22°F to 140°F operating range. OFDMA, MU-MIMO, and 1024-QAM modulation on the 5GHz band push peak throughput up to 3000Mbps at 160MHz channel width.
Built-In Switch, Flexible PoE
A built-in dual-port switch means a downstream outdoor camera or device can share the AN-520-AP-O's uplink without a separate switch run, with optional 15W PoE-out available when the access point itself is powered by 802.3bt 60W infrastructure.

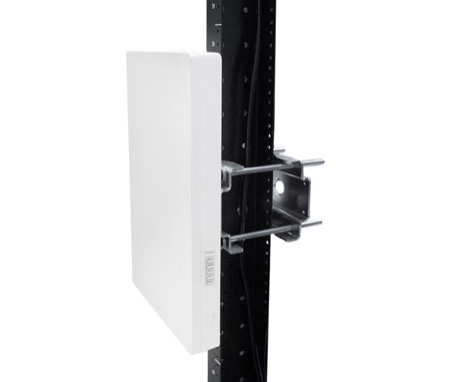

Mount It Anywhere
Included pole and tilt mount hardware covers eave, wall, and pole installations, matching the compact bracket footprint used across the rest of the Araknis 510/520 access point family.
Managed Through OvrC
OvrC and OvrC Connect give dealers remote configuration, firmware management, and client visibility from anywhere, with proactive alerts if the access point goes offline.
Full Specifications
| Warranty | 2 years |
| Antennas | 2x2 MIMO |
| Outdoor Rating | IP55 weather resistant |

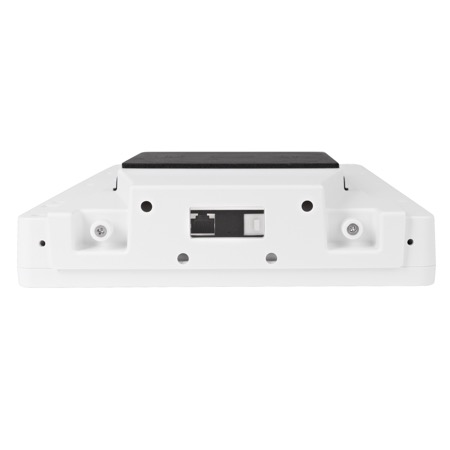

| Ethernet Ports | 1 x 2.5G BASE-T, 1 x 1G BASE-T (built-in dual-port switch) |
| PoE | 802.3af/at (14.45W DC / 15.28W PoE+); optional 15W PoE-out when powered by 802.3bt 60W |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) CERTIFIED |
| PHY Rate | 2.4GHz: up to 574Mbps | 5GHz: up to 2400Mbps |
| Modulation | Up to 1024-QAM on both bands |
| Channelization | 20/40/80/160MHz |
| Max TX Power | 25dBm (2.4GHz) / 26dBm (5GHz) |
| SSIDs | Up to 18 |
| Security | WPA/WPA2/WPA3, 802.1x, RADIUS |

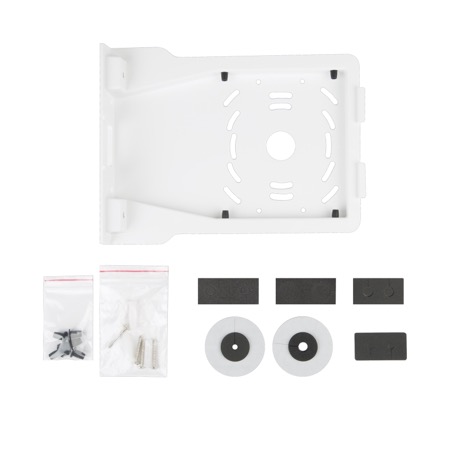

| Mounting | Pole and tilt mount options included |
| Certifications | FCC, IC, CE, AS/NZS, DFS, Wi-Fi 6 CERTIFIED |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
| Weight | 1.34 lb |
-
