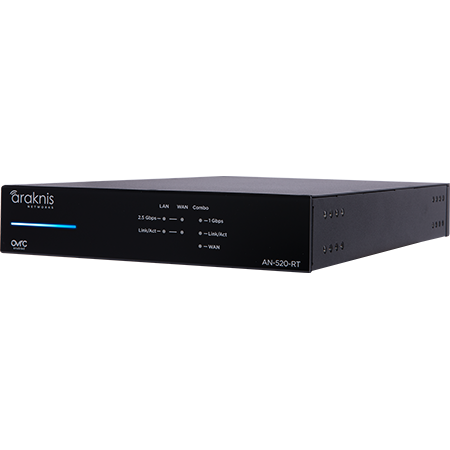

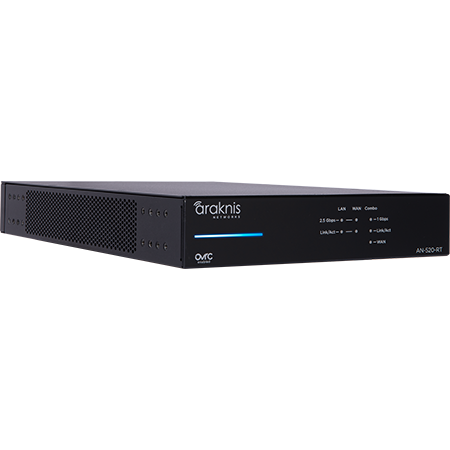

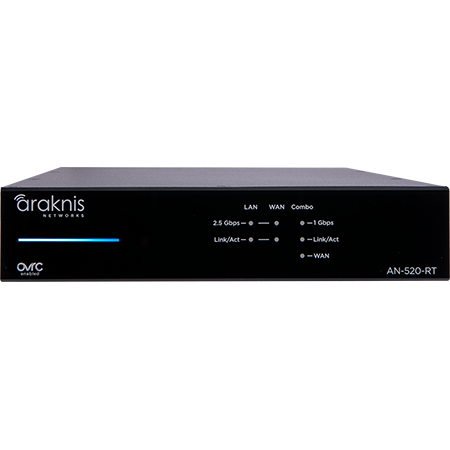

520-Series Dual-WAN Multi-Gigabit VPN Router

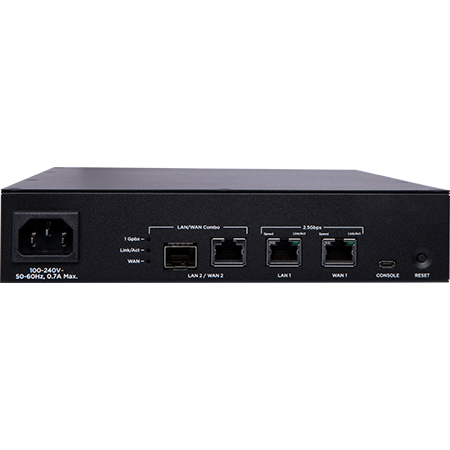

The Araknis 520 Series Router is the most capable router in the Araknis lineup, built for installations that need dual-WAN resilience alongside serious multi-gigabit throughput. Two 2.5G BASE-T interfaces plus a 1G RJ-45/SFP combo port give installers flexibility on both the WAN and LAN sides, while dual-WAN load balancing and link failover keep a site online even if one ISP connection drops.
Dual-WAN Reliability
Beyond simple failover, the 520 Series supports true dual-WAN load balancing across two internet connections, along with Multi-Dwelling Unit (MDU) configurations for properties that need segmented, managed internet across multiple units. Maximum throughput reaches 4400 Mbps, with IPSec tunnels alone supporting up to 2550 Mbps across 50 concurrent tunnels.
Enterprise-Grade VPN and Security
A stateful firewall with SPI and DoS/SYN-flood prevention protects the network by default, while gateway-to-gateway IPSec, a built-in PPTP server, and OpenVPN support give installers multiple ways to stand up secure remote access — no separate VPN appliance required.
Managed Through OvrC Pro
The 520 Series reports into OvrC Pro for cloud-based configuration, monitoring, and troubleshooting across an entire fleet of IP devices, giving dealers the diagnostics needed to head off issues before they turn into a service call.
Full Specifications
| Warranty | 2 years |
| Rack Spacing | 1U |
| WAN Interface | 1 x 2.5G BASE-T Ethernet (RJ-45) |
| LAN Interface | 1 x 2.5G BASE-T Ethernet (RJ-45) |
| LAN/WAN Combo Port | 1 x 1G BASE-T (RJ-45/SFP) |
| Maximum Throughput | 4400 Mbps |
| IPSec Throughput | 2550 Mbps, 50 tunnels |
| PPTP Throughput | 300 Mbps, 20 tunnels |
| OpenVPN Throughput | 650 Mbps, 20 tunnels |
| WAN Features | Single WAN, Dual WAN Link Failover, Dual WAN Load Balancing, Multi-Dwelling Units (MDU), Network Service Detection (NSD), VLANs 802.1Q, MSS Clamping, Auto MTU, DHCP Options, Metered Connection, Route Binding |
| Security Features | Stateful Firewall, SPI, DoS Prevention, SYN Flood, Port Forwarding, Port Triggering, UPnP, MAC/IP Based Access Management, MAC/IP Filtering, IPSec/PPTP Passthrough |
| VPN Features | Gateway-to-Gateway IPSec, PPTP Server, OpenVPN |
| Dimensions | 8.27" W x 1.73" H x 12.48" D |
| Weight | 3.75 lb |
-

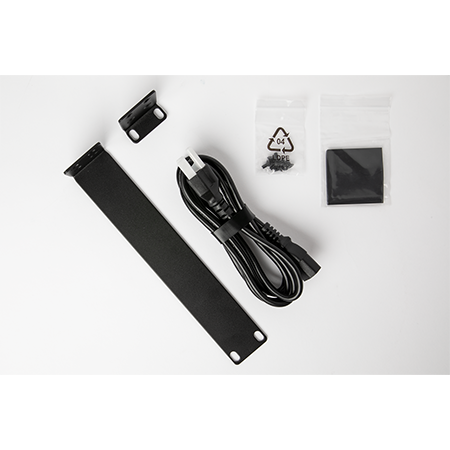

Packaging
