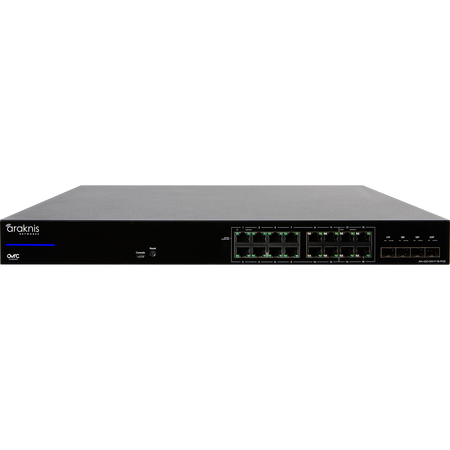

420 Series L3 Managed Partial Multi-gig Switch with Full PoE | 16 Plus 4 Rear Port
The Araknis 420 Series sits between the entry-level 320 and the advanced 620, combining fully managed Layer 2 and Lite Layer 3 routing with entry-level multi-gig performance. Static and inter-VLAN routing happen locally on the switch instead of relying entirely on the router, and 2.5Gbps multi-gig throughput on select ports makes the 420 Series a strong fit for AV-over-IP, Wi-Fi 6 access points, and multi-gig ISP service.
Scales From 16 to 48 Ports

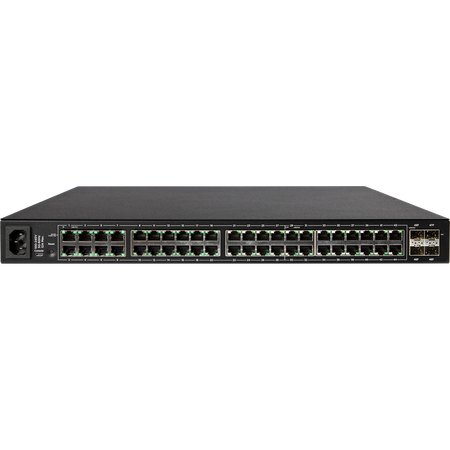

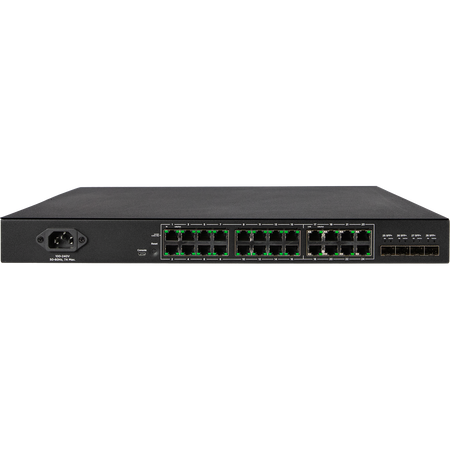

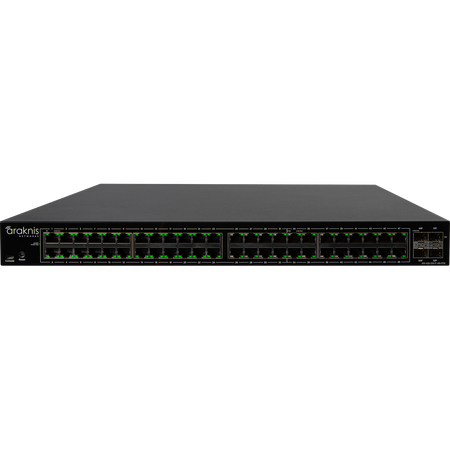

The 420 Series is available in 16, 24, 44, and 48-port configurations, all with full PoE+ (up to 30W per port) and quad SFP+ transceiver ports for 10G fiber uplinking over extended distances. Choose front- or rear-facing ports on the 16- and 24-port models for the cleanest cable routing in your rack.
Quiet, Reliable Cooling
Redesigned cooling fans keep the 420 Series running efficiently with reduced noise even under a full PoE load — important in AV racks and equipment closets where every added decibel is noticeable.
Managed Through OvrC
Every 420 Series switch reports into OvrC for cloud-based remote configuration, monitoring, and troubleshooting, backed by a 5-year limited warranty on parts and labor.
Full Specifications
| Rack Spacing | 1U (all configurations) |
| Warranty | 5 years |
| Management | Fully managed Layer 2 + Lite Layer 3 (static & inter-VLAN routing), OvrC cloud management |
| PoE Ports | 16, 24, 44, or 48 depending on configuration |
| PoE Max Power per Port | 30W (802.3af/at, 15W max simultaneous per port) |
| PoE Power Budget | 16-Port: 250W | 24-Port: 410W (44/48-Port scales further — see quote for exact budget) |
| Uplinks | Quad SFP+ transceiver ports, 10G fiber uplink support |
| Multi-Gig | 2.5Gbps multi-gig throughput on select ports — ideal for AV over IP, Wi-Fi 6 APs, and 2.5G ISP service |
| Dimensions | 17.32" W x 1.73" H x 16.14" D (all configurations) |
| Weight | 16-Port: 10.54 lb | 24-Port: 11.50 lb | 44-Port: 12.60 lb | 48-Port: 12.76 lb |
| Operating Temperature | 32°F to 122°F |
| Certifications | FCC, IC, CE, RCM, UL |
Related Accessories
Commonly paired with Araknis SFP+ transceiver modules (AN-SFP-10-D-1, AN-SFP-10-D-3, AN-SFP-10-E-80) for 10G fiber uplinks.
-
