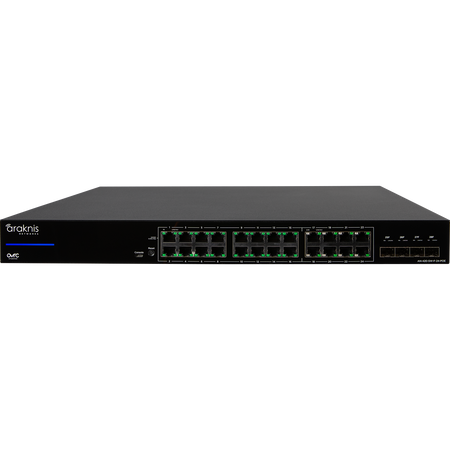

420 Series L3 Managed Partial Multi-gig Switch with Full PoE | 24 + 4 Front Port
The Araknis 420 Series sits between the entry-level 320 and the advanced 620, combining fully managed Layer 2 and Lite Layer 3 routing with entry-level multi-gig performance. Static and inter-VLAN routing happen locally on the switch instead of relying entirely on the router, and 2.5Gbps multi-gig throughput on select ports makes the 420 Series a strong fit for AV-over-IP, Wi-Fi 6 access points, and multi-gig ISP service. Quad SFP+ transceiver ports handle 10G fiber uplinking, and redesigned cooling fans keep noise down even under a full PoE load.
24-Port Configuration with Front-Facing Ports
This 24-port model routes RJ-45 connections to the front of the switch for the cleanest cable path in your rack or enclosure.
Managed Through OvrC
Every 420 Series switch reports into OvrC for cloud-based remote configuration, monitoring, and troubleshooting, backed by a 5-year limited warranty on parts and labor.
Full Specifications
| Rack Spacing | 1U |
| Warranty | 5 years |
| Management | Fully managed Layer 2 + Lite Layer 3 (static & inter-VLAN routing), OvrC cloud management |
| PoE Ports | 24 |
| PoE Max Power per Port | 30W (802.3af/at, 15W max simultaneous per port) |
| PoE Power Budget | 410W |
| Uplinks | Quad SFP+ transceiver ports, 10G fiber uplink support |
| Multi-Gig | 2.5Gbps multi-gig throughput on select ports — ideal for AV over IP, Wi-Fi 6 APs, and 2.5G ISP service |
| Dimensions | 17.32" W x 1.73" H x 16.14" D |
| Weight | 11.50 lb |
| Operating Temperature | 32°F to 122°F |
| Certifications | FCC, IC, CE, RCM, UL |
Related Accessories
Commonly paired with Araknis SFP+ transceiver modules (AN-SFP-10-D-1, AN-SFP-10-D-3, AN-SFP-10-E-80) for 10G fiber uplinks.
