320 Series L2 Managed Gigabit Switch | 48 + 4 Front Ports
The Araknis 320 Series L2 Managed Gigabit Switch delivers reliable managed switching with a full 1Gbps on every port simultaneously, in a fanless (8/16/24-port) or actively-cooled (48-port) 1U enclosure. Dual SFP uplinks (quad on the 48-port) keep fiber or extended RJ45 backhaul independent of the main backplane, and OvrC cloud management gives dealers remote configuration, monitoring, and automatic per-port device identification.

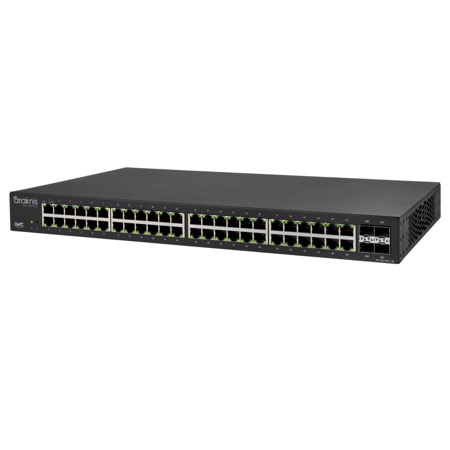

48-Port Configuration with Front-Facing Ports
This 48-port model routes RJ-45 connections to the front of the switch for the cleanest cable path in your rack or enclosure, with 104Gbps of switching capacity and 8 hardware QoS priority queues per port.
Managed Through OvrC
An improved web GUI simplifies VLAN and Link Aggregation setup, while OvrC cloud management gives dealers remote configuration and automatic per-port device identification — with a 5-year limited warranty on parts and labor.
Full Specifications
| Rack Spacing | 1U |
| Warranty | 5 years |
| RJ-45 1000BASE-T Ports | 48 |
| SFP Uplink Ports | 4 x 1000BASE-X |
| Switching Capacity | 104Gbps |
| Forwarding Rate | 77.4Mpps |
| MAC Table Size | 16K |
| Packet Buffer | 1.5MB |
| VLAN Features | 802.1Q, VLAN Group, Port-based VLANs, Private VLANs, Voice VLAN |
| Link Aggregation | Static / 802.3ad LACP |
| Security Features | 802.1x, ACL, RADIUS, SSHv2 |
| Management | OvrC cloud management, CLI/Web/Telnet, SNMP v1/2c/3, Port Mirroring, Cable Diagnostics |
| Dimensions | 17.32" W x 1.73" H x 10.22" D |
| Weight | 8.2 lb |
| Operating Temperature | 32°F to 122°F |
