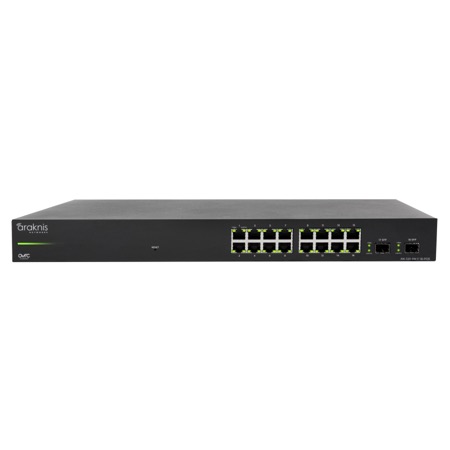

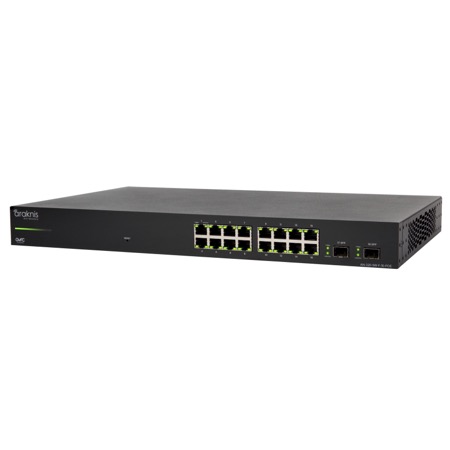

320 Series L2 Managed Gigabit Switch with Full PoE+ | 16 + 2 Front Ports
The Araknis 320 Series Full PoE+ Switch is a fully managed Layer 2 switch built for AV installs that need to power cameras, access points, and other PoE devices across the whole port count — not just a handful of ports. Every data port delivers full PoE+ (up to 30W), and dual SFP uplinks keep fiber or extended RJ45 backhaul off the PoE-capable ports.
16-Port Configuration with Front-Facing Ports
This 16-port model routes RJ-45 connections to the front of the switch for the cleanest cable path in your rack or enclosure, with 36Gbps of switching capacity and a 250W PoE power budget.
Managed Through OvrC
Websmart management means every 320 Series switch reports into OvrC for remote configuration, per-port PoE control and reboot, and VLAN/LACP setup through a simplified web GUI — with expanded onboard memory to support automatic device-to-port identification and future OvrC feature updates.
Full Specifications
| Rack Spacing | 1U |
| Warranty | 5 years |
| RJ-45 1000BASE-T Ports | 16 |
| SFP Uplink Ports | 2 x 1000BASE-X |
| PoE Ports | Full PoE+ on all 16 data ports |
| PoE Max Power per Port | 30W (802.3af/at, 15W max simultaneous per port) |
| PoE Power Budget | 250W |
| Switching Capacity | 36Gbps |
| Forwarding Rate | 26.8Mpps |
| VLAN Features | 802.1Q, VLAN Group, Port-based VLANs, Private VLANs, Voice VLAN |
| Link Aggregation | Static / 802.3ad LACP, up to 8 ports per group, 8 groups max |
| Multicast Features | IGMP Snooping v1/v2/v3, MLD Snooping v1/v2, IGMP Querier, IGMP Immediate Leave |
| Management | Websmart / OvrC cloud management, SNMP v1/2c/3, DHCP, Event Log |
| Dimensions | 17.32" W x 1.73" H x 10.23" D |
| Weight | 6.23 lb |
