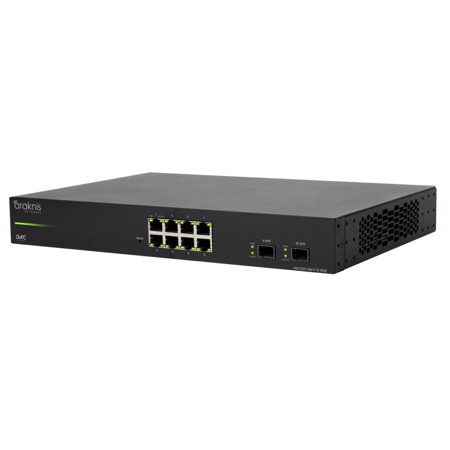

320 Series L2 Managed Gigabit Switch with Full PoE+

The Araknis 320 Series Full PoE+ Switch is a fully managed Layer 2 switch built for AV installs that need to power cameras, access points, and other PoE devices across the whole port count — not just a handful of ports. Every data port on every configuration delivers full PoE+ (up to 30W), and the family scales from an 8-port model up through 16- and 24-port configurations, with dual SFP uplinks on every size keeping fiber or extended RJ45 backhaul off the PoE-capable ports.

Choose Your Port Count and Position

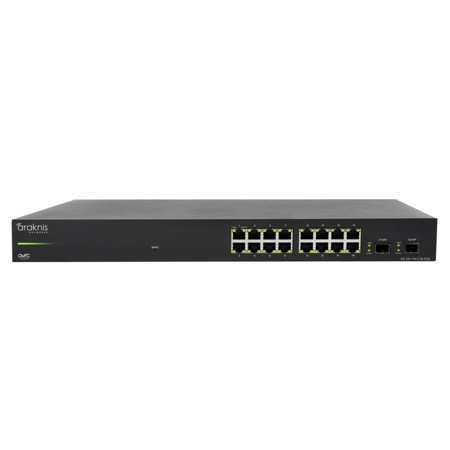

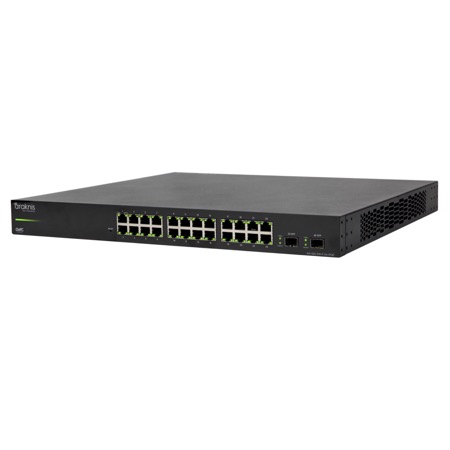

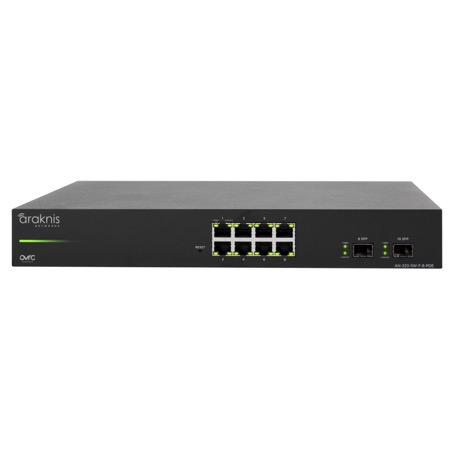

Pick the port count that matches the job — 8, 16, or 24 ports — and whether the RJ-45 ports face the front or the rear of the switch for the cleanest possible cable routing in your rack or enclosure. Switching capacity and PoE power budget scale up with port count, from 130W/20Gbps on the 8-port up to 375W/52Gbps on the 24-port.

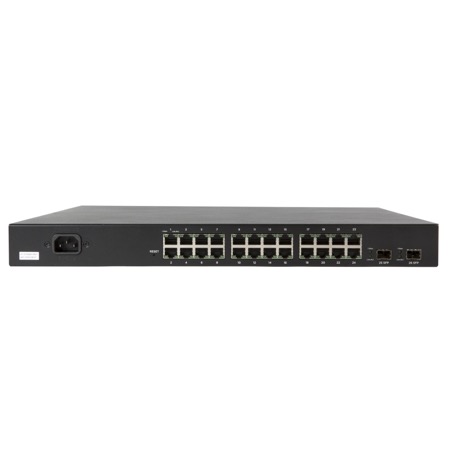

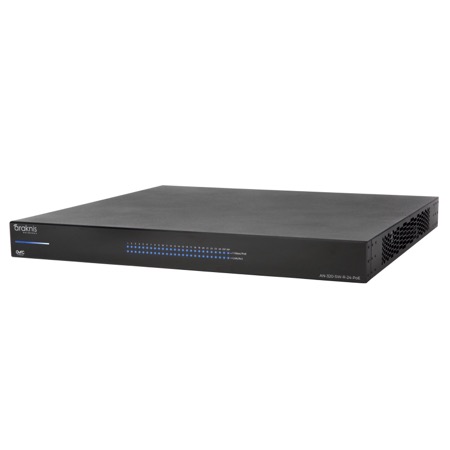

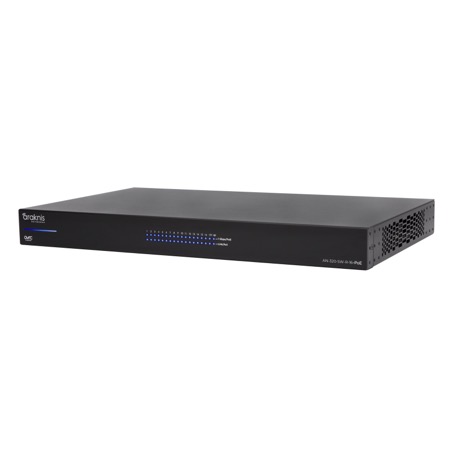

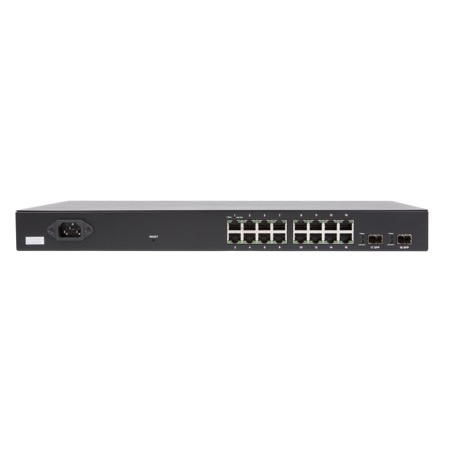

Rear-Port Option for Clean Rack Cabling

Every port count in the family — 8, 16, or 24 — is also available with rear-facing ports, letting cabling run straight into the back of a rack or enclosure instead of looping around to the front — a cleaner install where the switch sits behind a patch panel or in a tight equipment closet.

Managed Through OvrC

Websmart management means every 320 Series switch reports into OvrC for remote configuration, per-port PoE control and reboot, and VLAN/LACP setup through a simplified web GUI — with expanded onboard memory to support automatic device-to-port identification and future OvrC feature updates.
