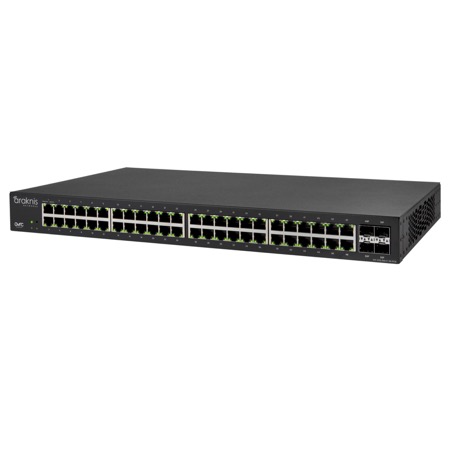

220 Series L2 Managed Gigabit Switch with Partial PoE+ | 48 + 4 Rear Ports
The Araknis 220 Series L2 Managed Gigabit Switch delivers cost-effective managed switching with full PoE+ (up to 30W per port) on every data port, sized for AV and smart-home installs that need Power over Ethernet without stepping up to premium pricing. Dual SFP uplinks on every model keep fiber or extended RJ45 backhaul off the PoE-capable ports, and OvrC cloud management gives dealers remote configuration, monitoring, and per-port control.
48-Port Configuration with Front-Facing Ports
This 48-port model routes RJ-45 connections to the front of the switch for the cleanest cable path in your rack or enclosure, backed by a 375W PoE power budget and 104Gbps of switching capacity.
Managed Through OvrC
A clear, concise web GUI simplifies VLAN and Link Aggregation setup, while OvrC cloud management gives dealers remote configuration, per-port power monitoring, and automatic device identification — with a 5-year limited warranty on parts and labor.
Full Specifications
| Rack Spacing | 1U |
| Warranty | 5 years |
| RJ-45 1000BASE-T Ports | 48 |
| SFP Uplink Ports | 4 x 1000BASE-X |
| PoE Ports | Full PoE+ on all 48 data ports |
| PoE Max Power per Port | 30W (802.3af/at, 8W max simultaneous per port) |
| PoE Power Budget | 375W |
| Switching Capacity | 104Gbps |
| Forwarding Rate | 77.4Mpps |
| MAC Table Size | 16K |
| Packet Buffer | 1.5MB |
| VLAN Features | 802.1Q, VLAN Group, Port-based VLANs, Voice VLAN |
| Link Aggregation | Static / 802.3ad LACP |
| Management | OvrC cloud management, CLI/Web/Telnet, SNMP, 802.1x + RADIUS |
| Dimensions | 17.32" W x 1.73" H x 16.22" D |
| Weight | 13.4 lb |
| Operating Temperature | 32°F to 122°F |
-
